Refrigerant Hoses

CLS5 Series KOBRA Secure Seal Hose

Product Number: CLS5-72R

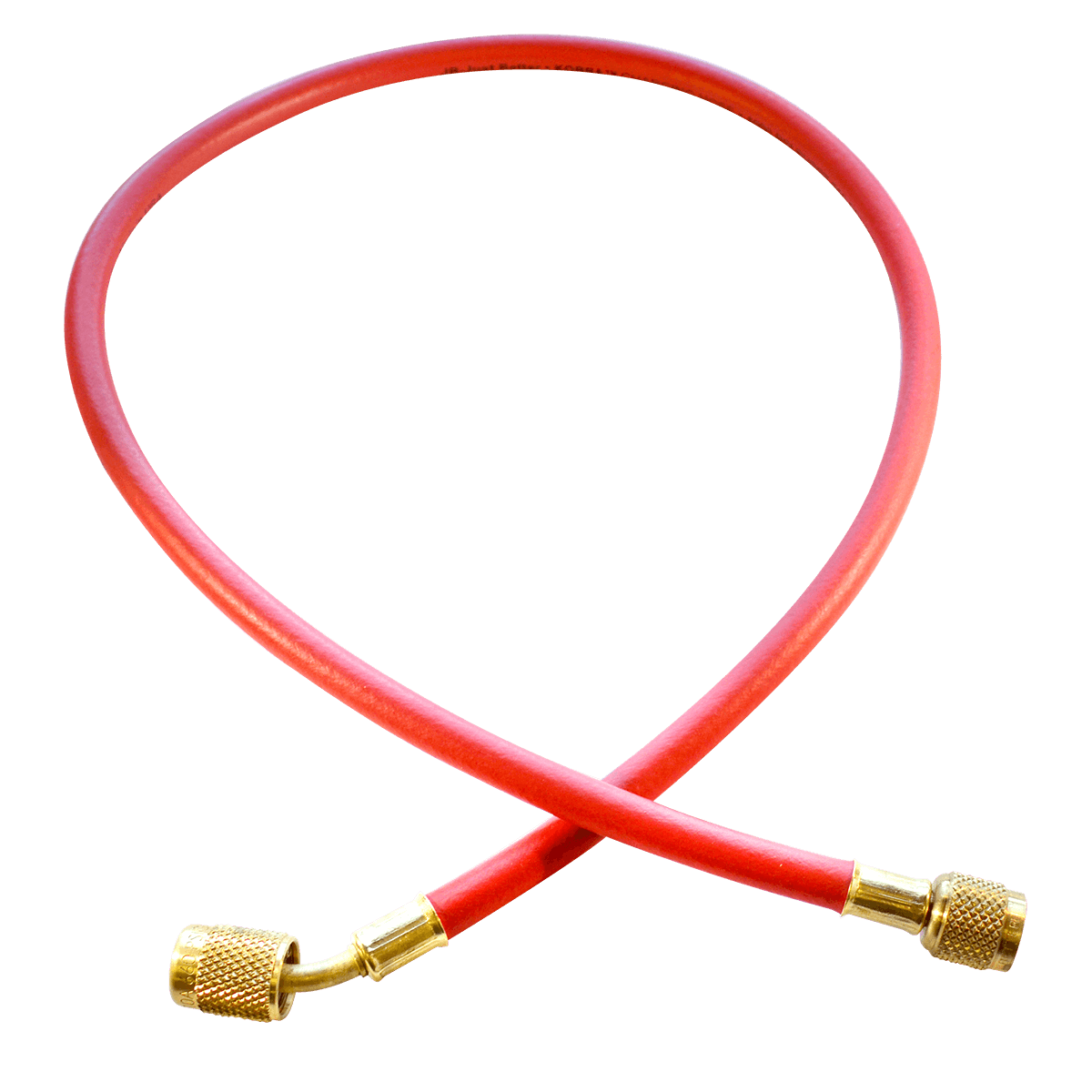

72"(182cm) 5/16" x 1/4" Red secure seal hose

Features
800 psi working; 4000 psi burst
UL R410A approved Secure Seal, specially designed to lock refrigerant inside the hose without the need for a ball valve attachment; opens to full flow
Three point contact on depressor
Fully field repairable with 33112RK/33115RK Rebuild Kits
Stainless steel thrust washer ensures free rotation under high pressure
Patent pending design of the fittings features a hood that locks the gasket into the fitting with a straight edge to straight edge force that eliminates the blowout of the gasket
Barbed depressor locks into the gasket, exuding more outward force and pushing the gasket further into place
Depressor is precisely machined for maximum flow and has a dimple that guides the valve core into place
Common crimp grips the full circumference of the hose yielding maximum hold and uniform seal that prevents leaks and bursts
Kevlar® lined
5 to 1 safety factor (beats industry standard of 4 to 1)
P90022 replacement O-ring
Rebuild kit 33112RK
