CoreMax Rapid Charge and Evacuation System

CoreMax

Product Number: CM-SNAP

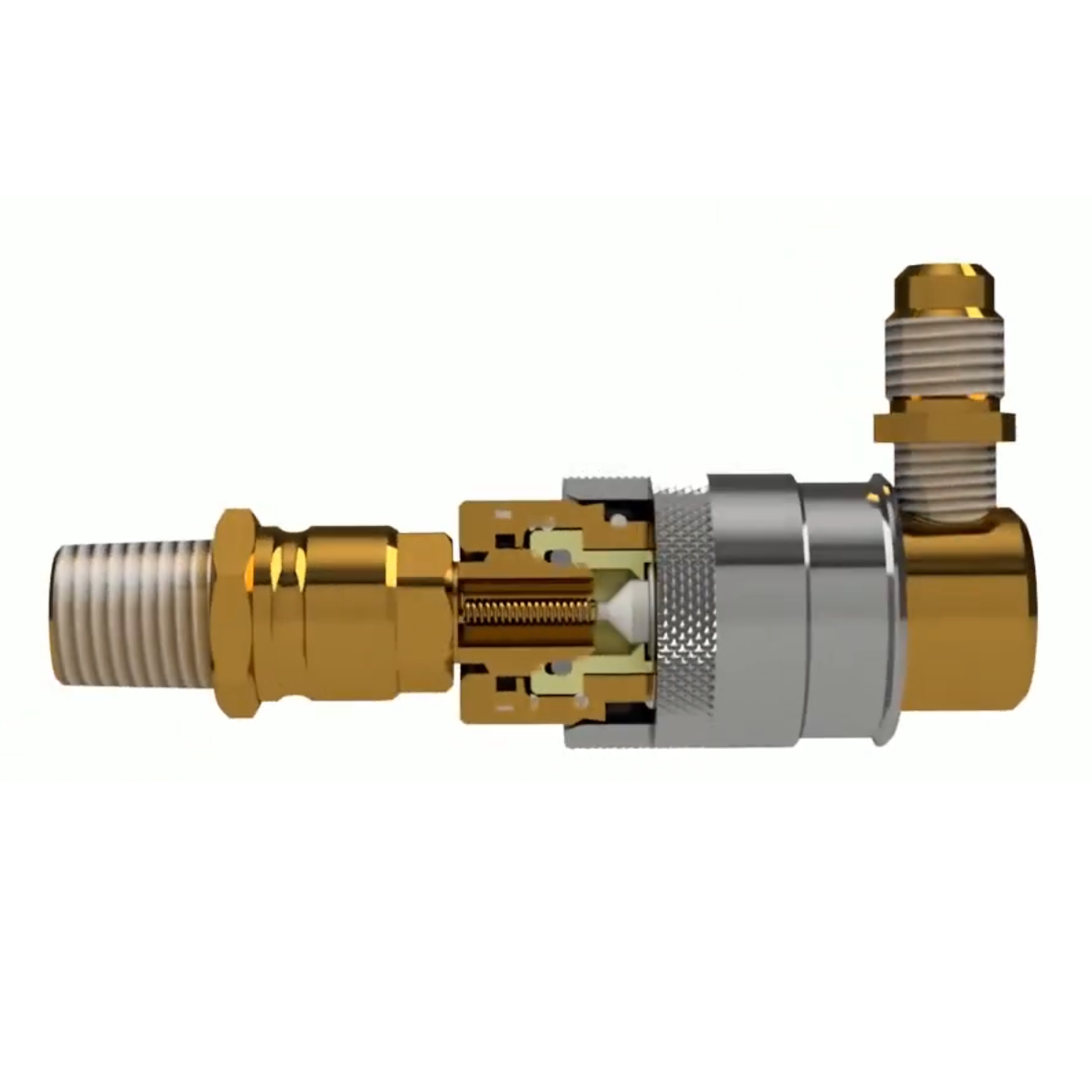

Snapmate Service

The SnapMate service connectors are designed to provide quick connections to CoreMax Valve Cores as well as standard access valves. The Collets grip on the threads and are specifically designed for the Service Industry by providing quick and easy connections to all 7/16-20, 45˚ flare access valves. Used by HVAC service technicians to evacuate and charge refrigerant during field servicing.
Connection Method : Sleeve Actuated
Pressure Rating: 625 (43.0)
MORE FEATURES
Termination : -4 (7/16-20) 45° (Male)
Brass collet grips and hardened steel sleeve
For pressures up to 625 psi
7/16-12, 45º Flare termination safe use of pressurized media in sealing, testing and filling requires thorough understanding of Fastest Connectors
Connectors are designed to mate with a specific application
Verify application prior to pressurizing or processing
A secondary restraint or operator protection is recommended for all pressure applications
Use only in a safe environment. Connectors are NOT designed for permanent connections and are temporary connections only
DO NOT EXCEED pressure rating as marked on connector or corresponding literature

General

Snapmate Service

Specifications

Quantity Per Pack 1 pack
Temperature N/A
Usage N/A
Battery Life N/A
Etc. N/A

DIMENSIONS

Length 4
Width 7
Height 1
Depth N/A
Weight 0,7

ON SITE TOOLS

91E4E2DC-ADA8-474E-ADCE-D1DC71D40634
CoreMax Rapid Charge & Evacuation System Flyer

91E4E2DC-ADA8-474E-ADCE-D1DC71D40634
CoreMax Installation Flyers

Shipping

HS Code 9026200000

Warranty

    1 YR

UPC

684520340572

COUNTRY OF ORIGIN

  • USA
