PLATINUM PRO Dual Voltage DC Vacuum Pump DV-285DC 10 CFM

Product Number: DV-285DC

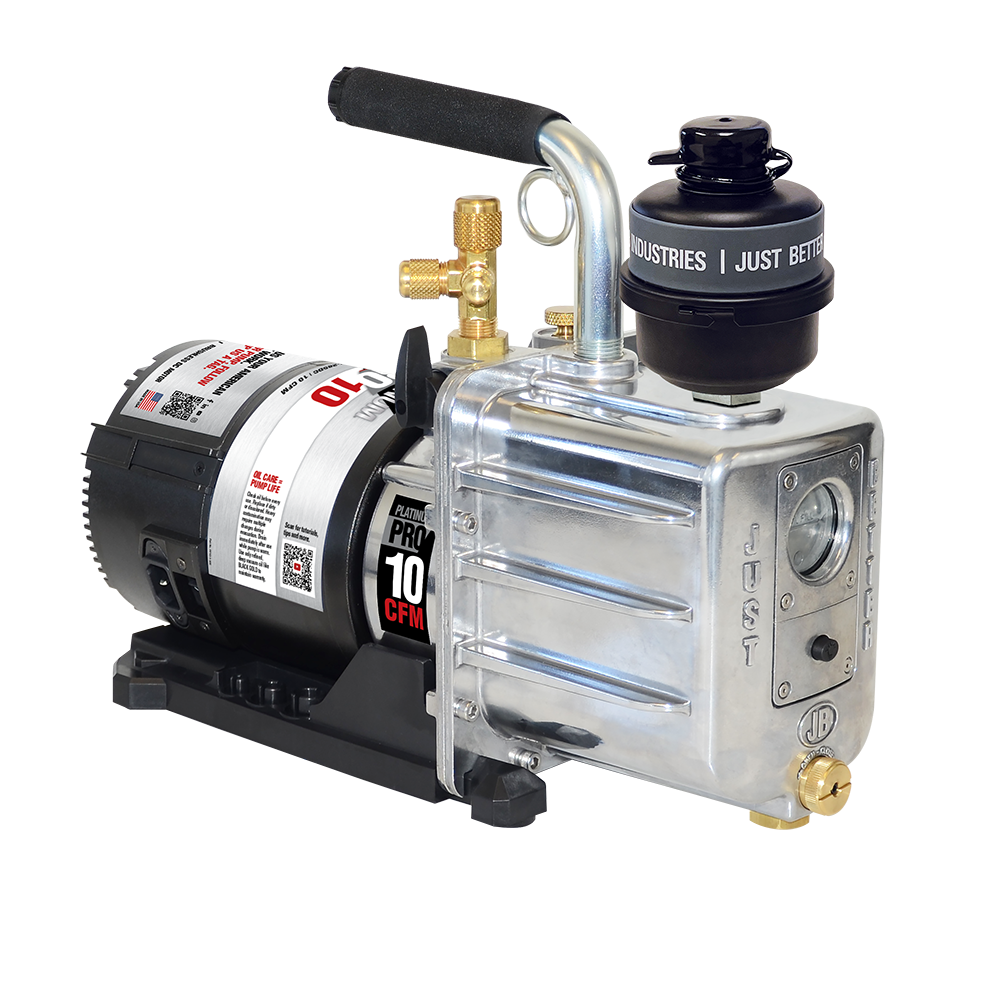

PLATINUM PRO 10 CFM Dual Voltage DC Vacuum Pump

Features

10 CFM

A2L Compatible

1/2 HP DC motor with broad operating voltage range

Dual-voltage 115/230V DC motor with sliding voltage switch

Angled easy access 1/4", 3/8" or 1/2" intake tee

Ergonomic 1/2" NPT handle and lift ring for easier hoisting

Check oil level at any time with LED back-lit sight glass

IEC 10' Locking Cord

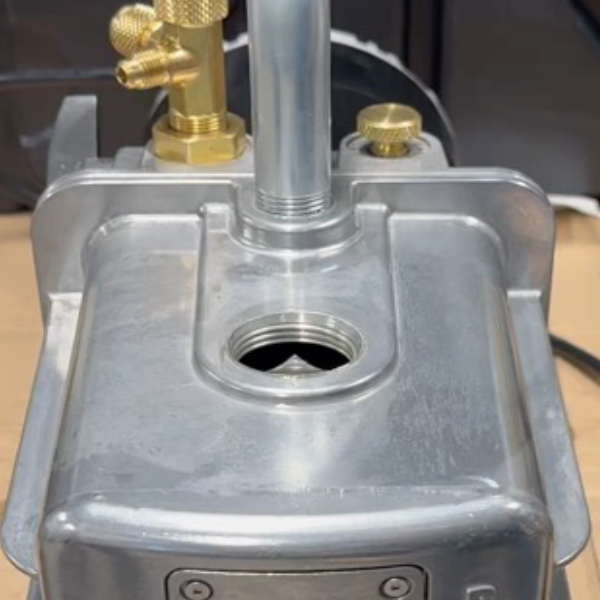

One-shot, full quart oil fill - Integrated bottle seal piercing spike for quick oil changes

Drains oil 3x faster with 1/4 turn ball valve drain

Blank-off isolation valve isolates the pump from the system

Gas ballast for extended oil life

Wide, four point stable base for better balance with cap storage

100% Factory Tested

Premium all metal construction with heavy-duty finned aluminum housing, American-manufactured brass fittings and stainless steel valving

100% Field Repairable

2-Year Warranty

Certifications

Product Details

Documentation

Videos And Images

Warranty

UPC

Country Of Origin

CLIMATE CLASS DM4-RW REVOLVER 4-Valve Wireless Digital Manifold

PART NO.
DM4-RW

Description
REVOLVER Wireless Digital Manifold 4-valve brass

View Model

DS-20000 ATLAS Digital Refrigerant Scale

PART NO.
DS-20000

Description
ATLAS Digital Refrigerant Scale in Case

View Model

PART NO.
DV-22N

Description
Digital Vacuum Gauge

View Model

PART NO.
DVO-12

Description
BLACK GOLD Vacuum Pump Oil (Quart)

View Model

F6-BOOST BLDC Ignition-Proof Refrigerant Recovery Unit

PART NO.
F6-BOOST

Description
BLDC Ignition-Proof Refrigerant Recovery Unit

View Model

PART NO.
VL-200

Description
ACCELERATOR Rapid Evacuation Kit

View Model

CFM	10
Motor	1/2 HP, Dual Voltage, DC
Intake Port	1/2" x 1/4" x 3/8"
Oil Capacity	32oz
Power Cord	USA, 10' IEC Locking Cord
Voltage	Dual Voltage 115v/230v

Length	14"
Width	18"
Height	9"
Weight	24 lbs
