Leak-proof Micron Hook-up Test Kit

Número de producto: DV-29

Leak-proof micron hook-up test kit, includes: DV-292, DV-293, DV-294 and DV-295

Used in conjunction with our digital micron gauges DV-40 or DV-22N and our superheat/subcooling gauge SH-35N, the DV-29 ensures a leak proof setup. JB's DV-29 works with all micron gauges and creates a closed system, eliminating any leakage under deep vacuum. The DV-29 eliminates other problems when attaching the micron gauge into the system. If the micron gauge is attached directly to the vacuum pump or with a 3' (91.4 cm) dedicated hose, you will get a lower reading as the gauge is sensing what the pump is doing and not what the pump is doing to the system.
The DV-29 consists of one of each of the following:
10" (25.4 cm) metal hose with O-ring quick couplers (DV-294)
MÁS CARACTERÍSTICAS
90 degree male flare with 1/4" O-ring quick coupler (DV-292)

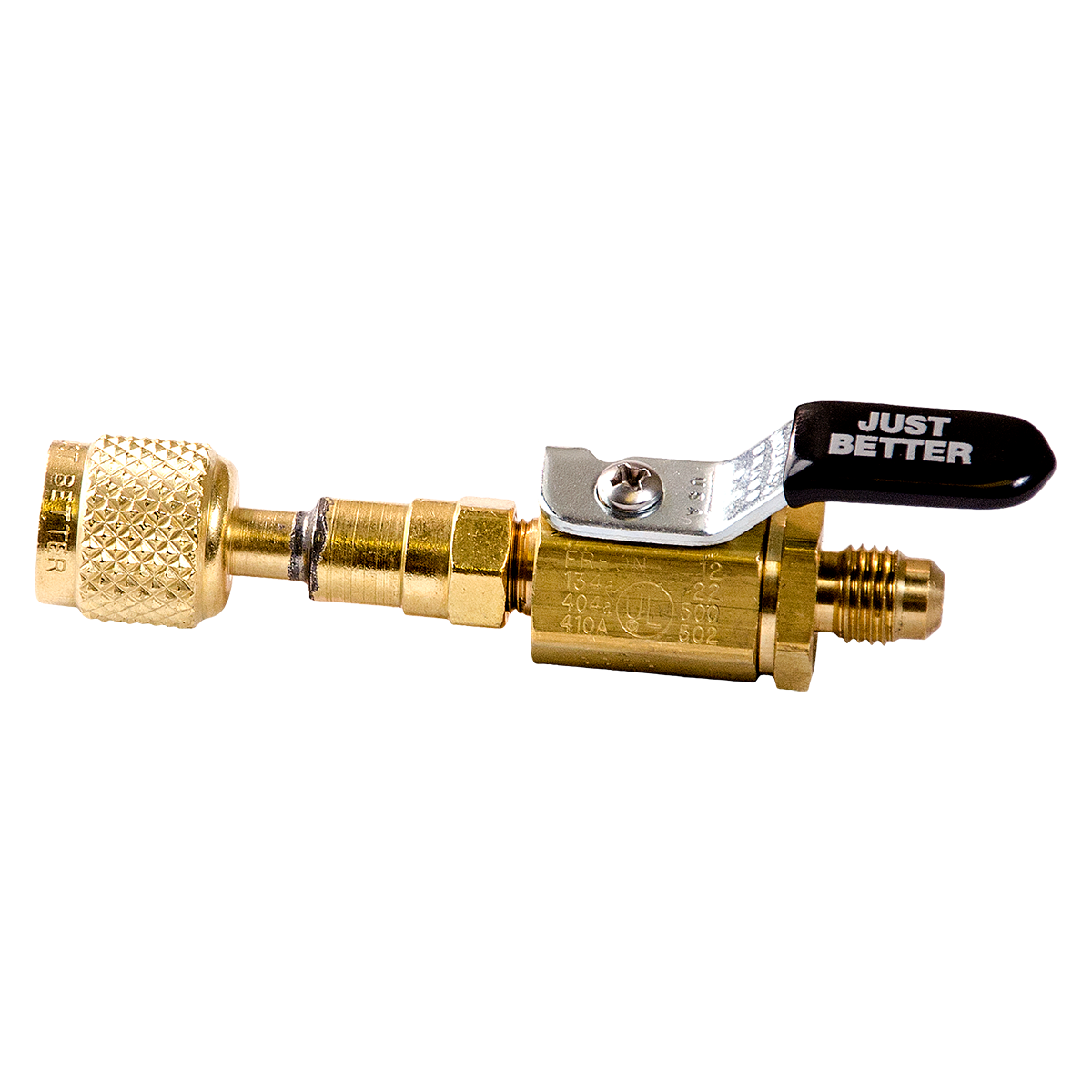

Ball valve with O-ring quick coupler with depressor (DV-295)
Valve assembly with 1/4" male flare connections (DV-293)
1/4" SAE swivel coupler (DV-291)

General

Leak proof micron hook-up test kit, includes: DV-292, DV-293, DV-294 and DV-295

Specifications

Quantity Per Pack 5 piece set

DIMENSIONS

Length 6
Width 14
Height 1
Depth N/A
Weight 1,8

ON SITE TOOLS

91E4E2DC-ADA8-474E-ADCE-D1DC71D40634
DV-29 Vacuum Gauge Blank-off Test Kit Instructions

91E4E2DC-ADA8-474E-ADCE-D1DC71D40634
Principles of Deep Vacuum

Shipping

Codigo HS 8481100090

Warranty

    1 Year

UPC

684520107298

COUNTRY OF ORIGIN

  • USA
